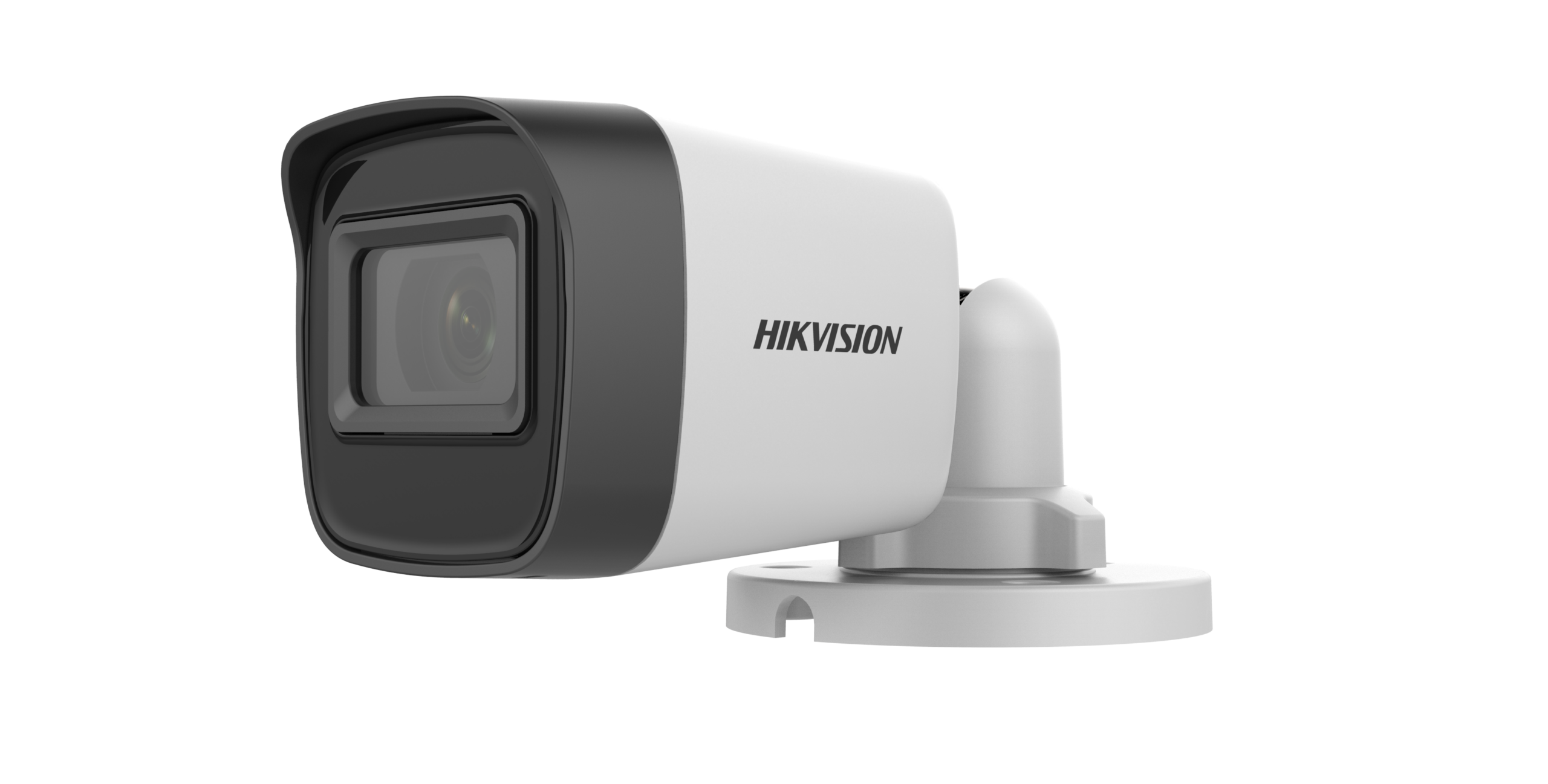

DS-2CE16H0T-ITPF 3.6MM 5 MP Fixed Bullet Camera – Outdoor Security CCTV

High-resolution 5 MP bullet camera with 3.6 mm lens, smart IR night vision, 4-in-1 output, and IP67 weatherproof build for reliable home and business security. Camera – Outdoor Security CCTV

SKU: DS-2CE16H0T-ITPF 3.6MM Categories: , Tags: , Brand:

The DS-2CE16H0T-ITPF 3.6MM is a dependable surveillance camera built to capture clear, detailed video for outdoor security. Featuring a 5 MP CMOS sensor and a 2560 × 1944 resolution, this camera provides sharp footage that helps you monitor people, vehicles, and important areas with confidence.

Equipped with smart IR technology, it automatically adjusts infrared illumination for night vision up to around 20 m, so you get usable video even in low-light or no-light conditions. The 3.6 mm fixed lens gives you a balanced wide viewing angle—ideal for entrances, yards, and storefronts—while the 4-in-1 switchable output (TVI/AHD/CVI/CVBS) ensures compatibility with a variety of DVR systems.

Built with an IP67 weatherproof rating, this camera stands up to rain, dust, and outdoor elements, making it a solid choice for both residential and commercial installations. Whether you’re upgrading your existing CCTV system or installing a new one, this fixed bullet camera delivers reliable performance and crisp security footage day and night.

Image Sensor

5 MP CMOS image sensor

Max. Resolution

2560 (H) × 1944 (V)

Min. Illumination

Color: 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR

Day & Night

ICR

Lens Type

2.4 mm, 2.8 mm, 3.6 mm, 6 mm fixed lens

Focal Length & FOV

2.4 mm, horizontal FOV: 103°, vertical FOV: 81°, diagonal FOV: 142°

2.8 mm, horizontal FOV: 86°, vertical FOV: 63°, diagonal FOV: 120°

3.6 mm, horizontal FOV: 80°, vertical FOV: 63°, diagonal FOV: 112°

6 mm, horizontal FOV: 55°, vertical FOV: 40°, diagonal FOV: 70°

Image Parameters Switch

STD/HIGH-SAT

Image Settings

Brightness, Sharpness, Mirror, Smart IR

Frame Rate

TVI: 5M@20fps, 4M@30fps, 4M@25fps, 1080p@30fps, 1080p@25fps

AHD: 5M@20fps, 4M@30fps, 4M@25fps

CVI: 4M@30fps, 4M@25fps

CVBS: PAL/NTSC

Day/Night Mode

Auto/Color/BW (Black and White)

White Balance

ATW/MANUAL

AGC

Support

Video Output

Switchable TVI/AHD/CVI/CVBS

Material

Plastic

Dimension

60.9 mm × 57.9 mm × 138.8 mm (2.39" × 2.28" × 5.47")

Operating Condition

-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)

Power Supply

12 VDC ±25%

Protection

IP67

IR Range

Up to 25 m
