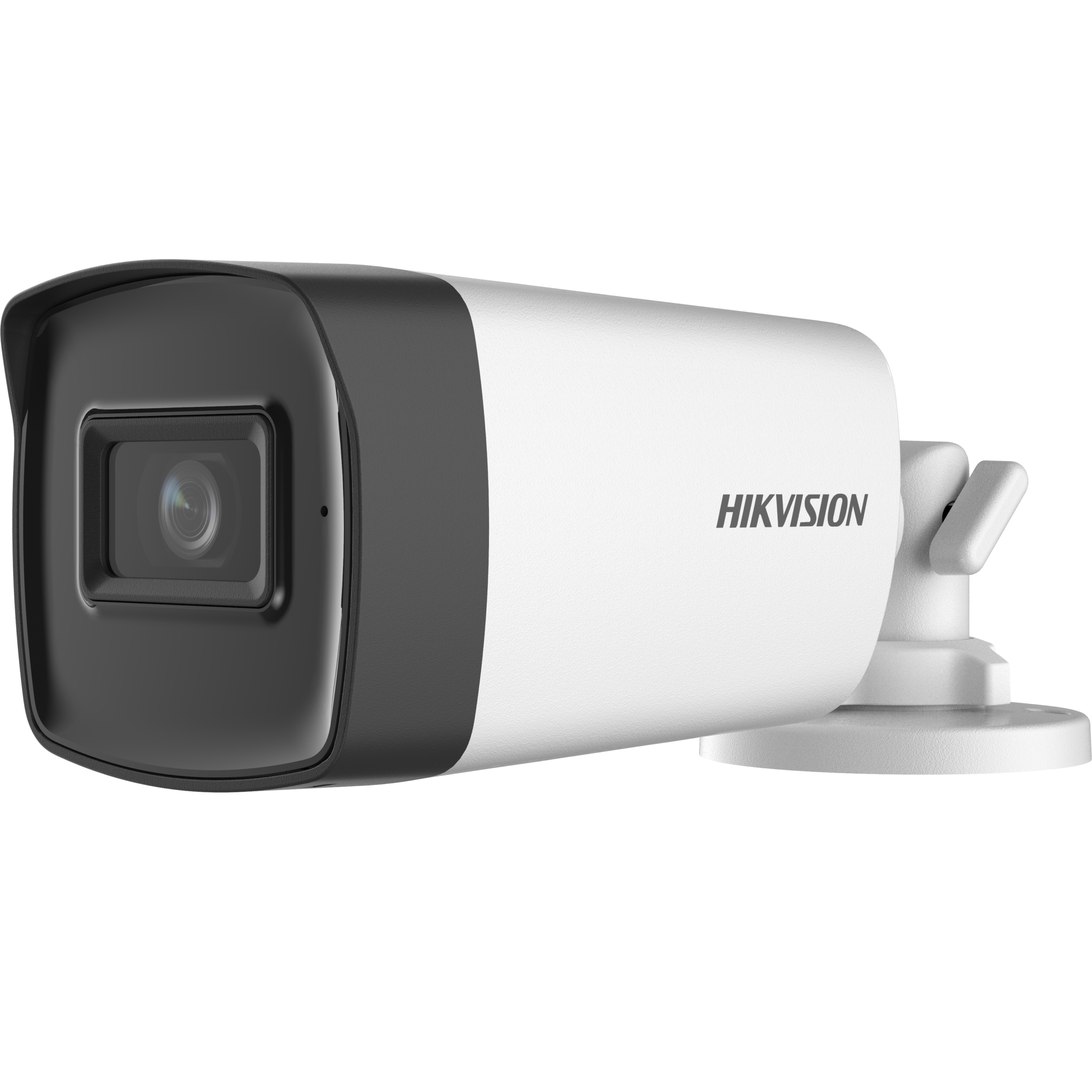

DS-2CE17H0T-IT3FS 2.8MM 5 MP Audio Bullet Security Camera – Outdoor CCTV
Reliable 5 MP bullet camera with a wide-angle 2.8 mm lens, smart IR night vision up to 40 m, built-in mic, and weatherproof design for versatile outdoor surveillance.
The DS-2CE17H0T-IT3FS 2.8MM is a robust outdoor bullet security camera engineered to deliver clear, high-resolution video around the clock. With a 5 MP CMOS sensor and 2560 × 1944 resolution, this camera captures sharp and detailed footage that helps you monitor entrances, driveways, yards, or business perimeters with confidence.
Designed for day/night operation, it uses infrared LEDs to illuminate scenes up to 40 meters in low-light conditions, so you won’t miss important events after dark. The 2.8 mm fixed lens offers a broad field of view — ideal for wide coverage with fewer blind spots — while the built-in microphone adds audio context to your video feeds without needing extra cabling.
This camera supports multiple video output formats (TVI/AHD/CVI/CVBS), making it compatible with most DVR systems, and its IP67 weatherproof rating ensures reliable operation even in harsh outdoor conditions. Whether you’re securing your home or upgrading a business surveillance setup, this camera delivers dependable performance and great value.
| Image Sensor | 5 MP CMOS |
|---|---|
| Max. Resolution | 2560 (H) × 1944 (V) |
| Min. Illumination | 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Day & Night | IR Cut Filter |
| Signal System | PAL/NTSC |
| Lens Type | 2.8 mm, 3.6 mm, 6 mm fixed focal lens |
| Focal Length & FOV | 2.8 mm, horizontal FOV: 85°, vertical FOV: 63°, diagonal FOV:110° 3.6 mm, horizontal FOV: 80°, vertical FOV: 63°, diagonal FOV:105° 6 mm, horizontal FOV: 57°, vertical FOV: 43°, diagonal FOV:72° |
| Supplement Light Type | IR |
| Supplement Light Range | Up to 40 m |
| Image Parameters Switch | STD/HIGH-SAT |
| Image Settings | Brightness, Mirror, Sharpness, Smart IR |
| Frame Rate | TVI: 5 MP @ 20 fps, 4 MP @ 30 fps, 4 MP @ 25 fps, 1080p @ 30 fps, 1080p @ 25 fps AHD: 5 MP @ 20 fps, 4 MP @ 30 fps, 4 MP @ 25 fps CVI: 4 MP @ 30 fps, 4 MP @ 25 fps CVBS: PAL/NTSC |
| Day/Night Mode | Auto/Color/BW (Black and White) |
| Wide Dynamic Range (WDR) | Digital WDR |
| White Balance | Auto, Manual |
| Video Output | Switchable TVI/AHD/CVI/CVBS |
| Material | Front cover: Metal, Main body: Plastic |
| Dimension | 78.9 mm × 75.4 mm × 216.6 mm (3.10" × 2.97" × 8.53") |
| Operating Condition | -40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing) |
| Power Supply | 12 VDC ± 25% |
| Protection | IP67 |
