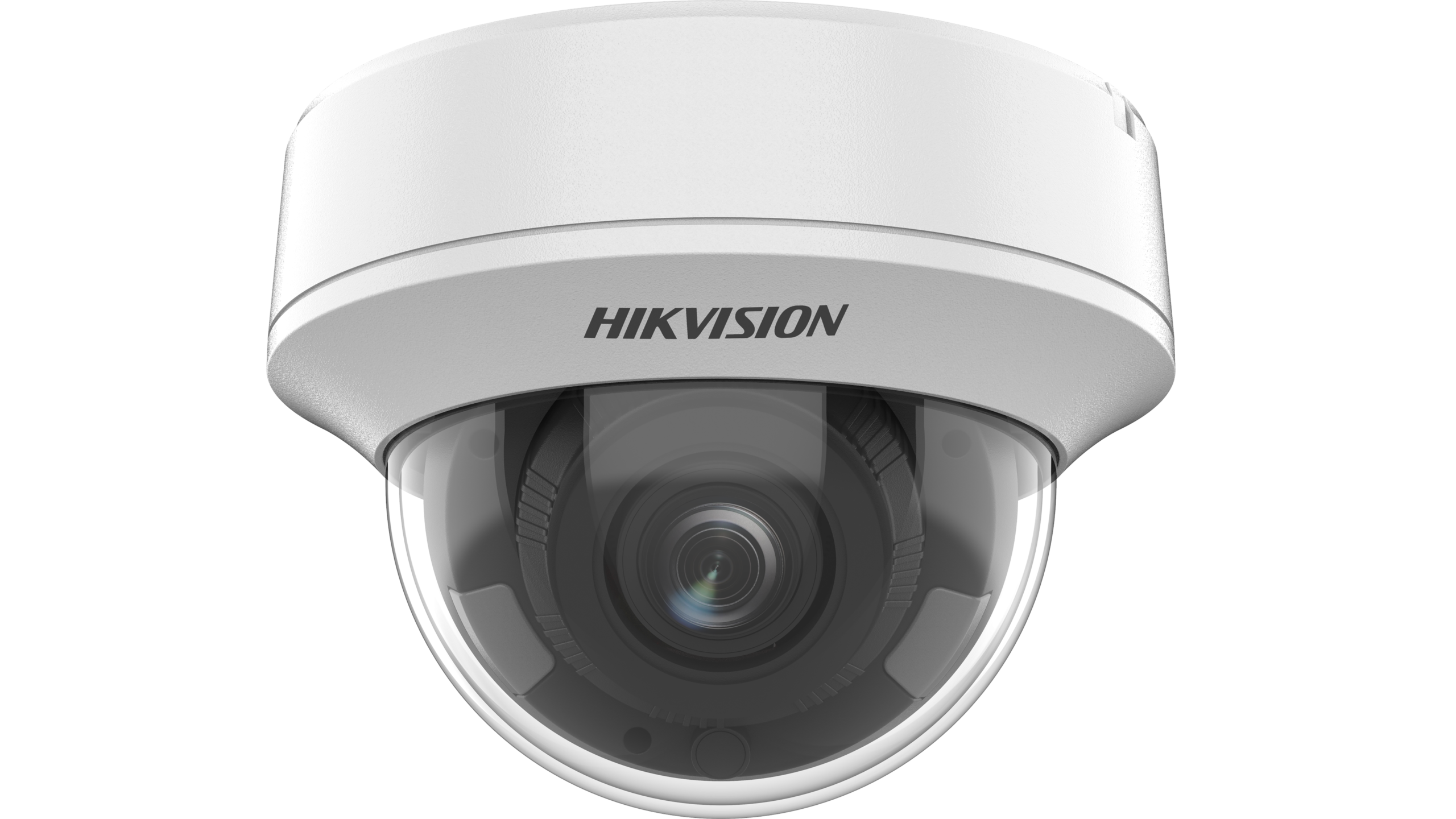

DS-2CE56H8T-AITZF 5MP HD Varifocal Dome Camera (2.7-13.5 mm)**
High-resolution DS-2CE56H8T-AITZF 5MP dome camera featuring a motorized 2.7-13.5 mm lens, Smart IR night vision up to 60 m, true WDR and flexible video output options for robust security.
Boost your security setup with the DS-2CE56H8T-AITZF 5MP HD Varifocal Dome Camera, designed to deliver crisp, detailed video day and night. This advanced security camera features a 5 MP CMOS sensor with up to 2560 × 1944 resolution for clear, high-definition footage that helps you spot faces, objects, and activity with confidence.
The motorized varifocal lens (2.7 – 13.5 mm) gives you adjustable zoom and field of view, so you can tailor how much area it covers without changing hardware — perfect for wide corridors or focused door-way monitoring.
Smart EXIR infrared technology extends night vision up to around 60 meters, meaning this camera doesn’t miss action in low light. True 130 dB Wide Dynamic Range (WDR) balances bright and dark areas in complex lighting situations, while 3D Digital Noise Reduction (DNR) helps produce clean, noise-free images.
With multi-format video outputs (TVI/AHD/CVI/CVBS) and Up the Coax control, installation is flexible and integrates smoothly with a variety of DVR systems. Whether you’re upgrading an existing setup or building a new one, this dome camera gives you adaptable, high-quality performance.
| Image Sensor | 5 MP CMOS |
|---|---|
| Max. Resolution | 2560 (H) × 1944 (V) |
| Min. Illumination | Color: 0.003 Lux@(F1.38, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s |
| Day & Night | IR Cut Filter |
| Signal System | PAL/NTSC |
| Lens Type | Varifocal lens, motor-driven lens, 2.7 to 13.5 mm |
| Focal Length & FOV | Horizontal FOV: 92.3° to 29.3° |
| Supplement Light Type | IR |
| Supplement Light Range | Up to 60 m |
| Image Settings | Brightness;Sharpness;Mirror;AGC |
| Frame Rate | TVI: 2 MP @ 25 fps, 2 MP @ 30 fps, 4 MP @ 25 fps, 4 MP @ 30 fps, 5 MP @ 20 fps AHD: 4 MP @ 25 fps, 4 MP @ 30 fps, 5 MP @ 20 fps CVI: 4 MP @ 25 fps, 4 MP @ 30 fps CVBS: PAL, NTSC |
| Day/Night Mode | Auto/Color/BW (Black and White) |
| Wide Dynamic Range (WDR) | ≥130 dB |
| Image Enhancement | BLC |
| Privacy Mask | 4 programmable privacy masks |
| Noise Reduction | 3D DNR |
| White Balance | Auto/Manual |
| Video Output | 1 HD analog output;Switchable TVI/AHD/CVI/CVBS |
| Motion Detection | 4 programmable motion areas |
| Power | 9.6 VDC to 14.4 VDC; 19.2 VAC to 28.8 VAC max. 8 W |
| Material | Plastic |
| Dimension | Φ 136 mm × 101.9 mm ( Φ 5.35" × 4.01") |
| Operating Condition | -40 °C to 50 °C (-40 °F to 122 °F), humidity 90% or less (non-condensing) |
| Communication | HIKVISION-C |
