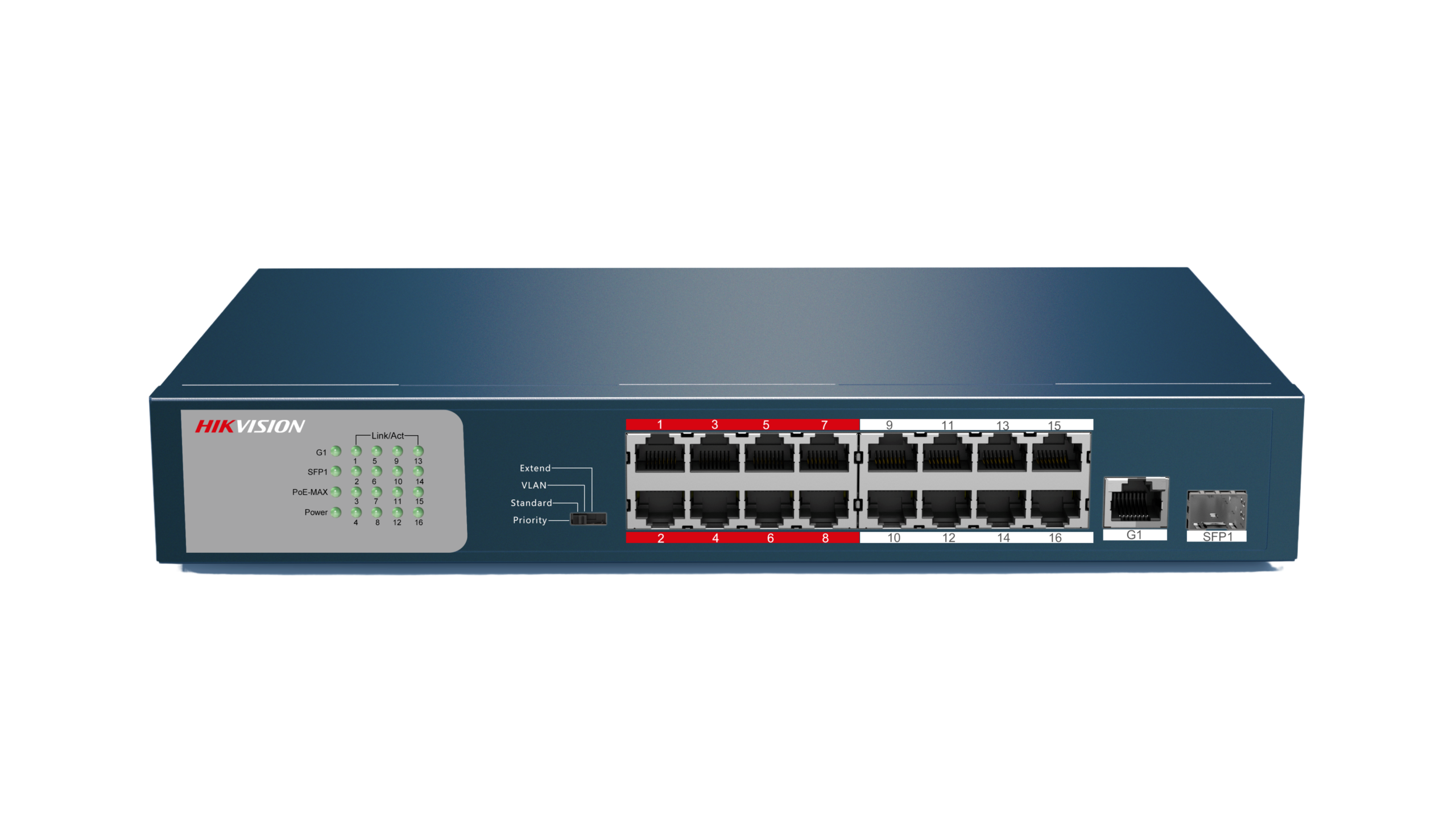

Hikvision DS-3E0318P-E-M 16-Port Unmanaged PoE Ethernet Switch

High-performance unmanaged PoE switch with 16 PoE Ethernet ports, 1 gigabit uplink RJ45, and 1 gigabit SFP port, delivering reliable power and data for CCTV systems and network devices in a compact, ready-to-install design.

SKU: DS-3E0318P-E-M Categories: , Tags: , Brand:

The Hikvision DS-3E0318P-E-M 16-Port Unmanaged PoE Ethernet Switch is an ideal networking solution for powering and connecting multiple IP devices such as surveillance cameras, phones, and access points without complex setup. Featuring 16 fast PoE ports compliant with IEEE 802.3af/at standards, it delivers up to 30 W per port while efficiently managing power and data over a single cable — perfect for CCTV installations and small to medium-scale networks.

This switch also includes 1 gigabit RJ45 uplink and 1 gigabit SFP port for higher-speed backbone connections, letting you integrate fiber links or connect to core network equipment. With a sturdy metal casing and support for extend mode (up to 250-300 m PoE reach), you get stable performance even in demanding setups. Built-in features like VIP port priority and surge protection enhance reliability for video and data traffic in security-critical environments.

Whether you’re expanding an existing system or building a new network backbone, this unmanaged switch delivers dependable performance with plug-and-play simplicity.

Storage Temperature

Storage Temperature: -40 °C ~ 70 °C

Working Temperature

Operating Temperature: 0 °C ~ 40 °C

Working Humidity

Operating Humidity: 10% – 90% RH non-condensing

Storage Humidity

Storage Humidity: 5% – 90% RH non-condensing

Power Input

100~240 V AC,50/60 Hz

Switching Capacity

7.2 Gbps

MAC Address Learning

Auto-learning/auto-aging

Store-and-forward

Supported

Working Mode

Priority, Standard, Isolate, Extend

PoE Standard

IEEE 802.3af, IEEE 802.3at

High-priority Port

Ports 1-8

1000 Mbps SFP

1 independent

10/100/1000 Mbps RJ45

1

10/100 Mbps RJ45

16

Network Standard

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.3z

Transmission Speed

Ethernet: 10 Mbps (Half Duplex) / 20 Mbps (Full Duplex),Fast Ethernet: 100 Mbps (Half Duplex) / 200 Mbps (Full Duplex),Gigabit Ethernet: 2000 Mbps (Full Duplex)

Transmission Medium

Ethernet: Cat 3 or better UTP/STP,Fast Ethernet: Cat 5 or better UTP/STP,Gigabit Ethernet: Cat 5 or better UTP/STP,1000 Base-SX: MMF (Multimode optical fiber),1000 Base-LX: MMF (Multimode optical fiber) or SMF (Single Mode Fiber)

Lightning-proof Ranking

4 kV

PoE Powering Mode

Supports 8-pin power supply

PoE Port

1-16
