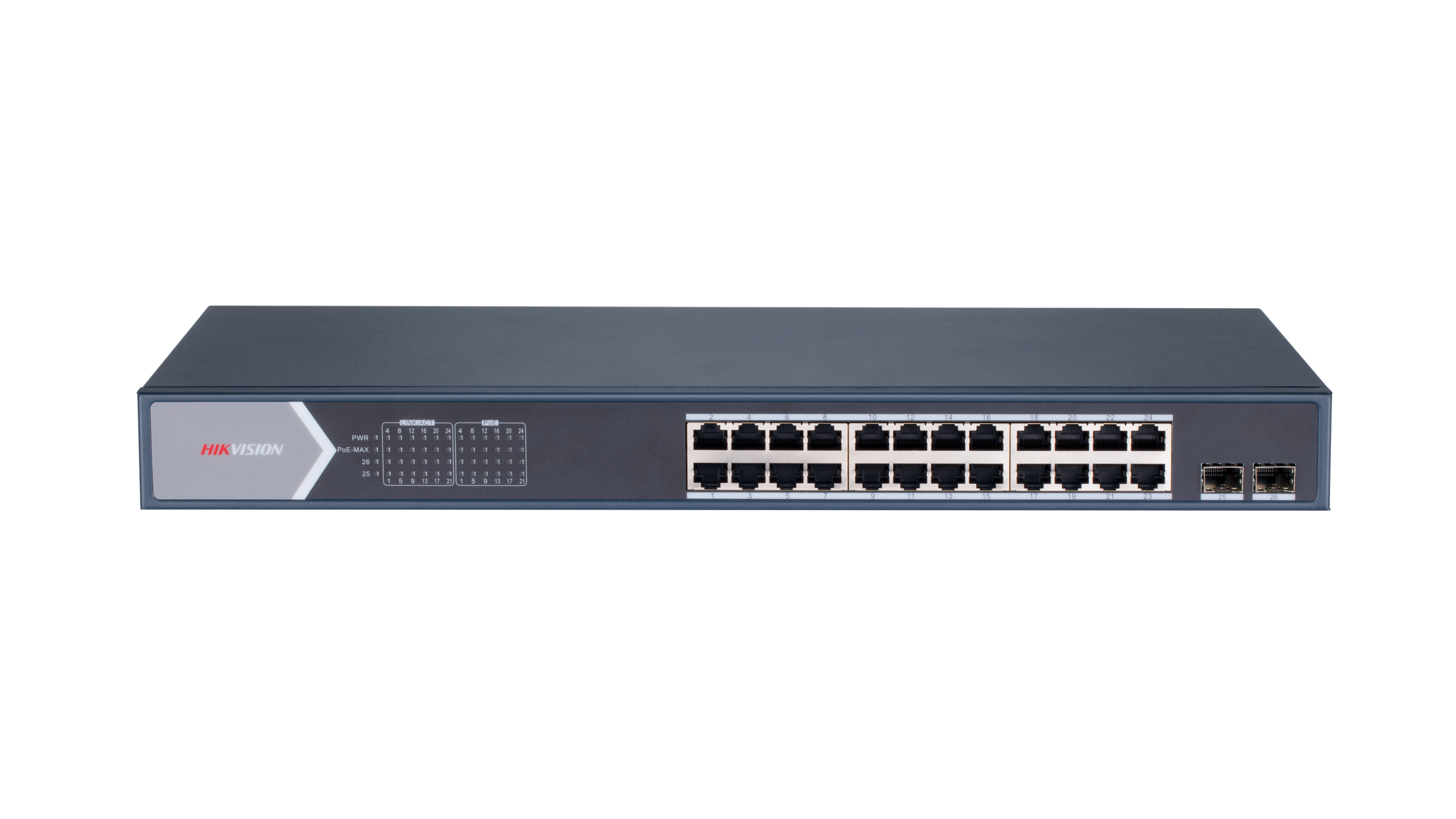

Hikvision DS-3E1526P-SI 24-Port Smart Managed PoE Ethernet Switch

Shop

Hikvision DS-3E1526P-SI 24-Port Smart Managed PoE Ethernet Switch

High-performance smart managed PoE switch with 24 gigabit PoE ports, 2 uplink fiber ports, up to 370 W PoE budget, advanced network controls, and extended PoE reach for CCTV and business networking.

The Hikvision DS-3E1526P-SI 24-Port Smart Managed PoE Ethernet Switch is a reliable and feature-rich network switch tailored for surveillance systems, offices, and growing network infrastructures. It packs 24 gigabit PoE RJ45 ports and 2 gigabit fiber optical uplink ports so you can power and connect many devices — like IP cameras, access points, and VoIP phones — using just Ethernet cables. With a total PoE power budget of up to 370 W and support for IEEE 802.3af/at standards, this switch ensures stable power delivery while handling high-speed data traffic.

Smart management features such as VLAN configuration, link aggregation, SNMP, QoS, and network health monitoring help keep your network stable and easy to maintain. Built-in 6 kV surge protection safeguards connected devices, and PoE watchdog functionality automatically detects and restarts cameras that stop responding. Plus, with extended PoE support up to 300 meters, you can feed power to distant devices without extra hardware.

Whether you’re deploying a medium-sized CCTV system or powering a busy office LAN, this switch delivers robust performance with flexible management tools to match.

Shell

Metal material

Net Weight

2.975 kg (6.56 lb)

Dimensions (W × H × D)

440.00 mm × 44.00 mm × 221.00 mm (17.32'' × 1.73'' × 8.70'')

Operating Temperature

0°C to 45 °C (0 °F to 113 °F)

Storage Temperature

-40 °C to 85 °C (-40 °F to 185 °F)

Power Supply

100 to 240 VAC, 50/60 Hz, Max. 6.3 A

Ports

24 × Gigabit PoE port,2 × Gigabit fiber optical port

MAC Address Table

8 K

Switching Capacity

56 Gbps

Packet Forwarding Rate

41.66 Mpps

Internal Cache

4.1 Mbits

PoE Standard

IEEE 802.3af,IEEE 802.3at

PoE Power Pin

End-span: 1/2(+), 3/6(-);

PoE Port

PoE: Ports 1 to 24

Max. Port Power

30 W

Long Range

Ports 1 to 24: up to 300 m.

Long range performance may vary depend on camera model or cable condition.

Port Isolation

Ports 1 to 24: port isolation mode to improve network security.

Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.

VLAN

VLAN is used for network scale planning and network health improvement.

Support 802.1Q.

Configurable VLAN ID from 1-4094.

Support Trunk, Access port mode.

Support Max. 4094 VLAN.

System MaiEMCntenance

Remote upgrade, default parametersFCC (47 CFR Part 15, Subpart B);

CE-EMC (EN 55032: 2015, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011 +A1: 2014, EN 55035: 2017);

IC (ICES-003: Issue 6);

RCM (ASNZS CISPR 32: 2015) recovery, logs viewing, basic network parameters configuration, import and export configuration, time sync

Safety

UL (UL 60950-1);

CB (IEC 60950-1:2005, AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition);

CE-LVD (EN 60950-1: 2006 + A11: 2009 +A1: 2010+A12: 2011+A2: 2013, EN 62368-1: 2014+A11: 2017)
