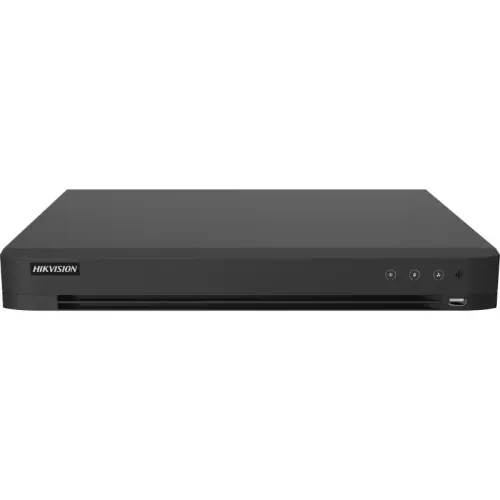

Hikvision iDS-7232HQHI-M2-XT 32-Channel AcuSense Smart DVR with AI Analytics

Shop

Hikvision iDS-7232HQHI-M2-XT 32-Channel AcuSense Smart DVR with AI Analytics

The Hikvision iDS-7232HQHI-M2-XT is a 32-channel AcuSense DVR with intelligent human and vehicle detection, hybrid analog/IP camera support, and efficient H.265 Pro+ compression — designed for robust and smart surveillance in homes, businesses, and large facilities.

SKU: iDS-7232HQHI-M2-XT Categories: , Tags: , Brand:

Elevate your security system with the Hikvision iDS-7232HQHI-M2-XT 32-Channel DVR, built to deliver reliable, intelligent video recording for growing surveillance needs. Featuring AcuSense deep learning technology, this DVR can accurately differentiate people and vehicles from background motion, which significantly reduces false alarms and helps you focus on what matters most.

With capacity for up to 32 channels, this DVR is ideal for large areas such as retail stores, corporate offices, warehouses, or campus facilities. Its hybrid support for both analog and IP cameras gives you flexibility to mix existing CCTV cameras with newer network devices — perfect if you’re expanding or upgrading your system over time.

Thanks to H.265 Pro+ compression, the iDS-7232HQHI-M2-XT reduces file sizes without compromising video quality, saving you storage space and reducing costs. Smart features like motion filtering, perimeter protection, and quick search tools make it faster and easier to find relevant footage when you need it.

Whether you’re watching live feeds, reviewing recordings on a connected monitor, or checking remotely from your phone, this DVR offers responsive performance and peace of mind. Robust, adaptable, and packed with intelligent analytics, the iDS-7232HQHI-M2-XT is a strong choice for advanced security systems.

IP Camera Input

8-ch (up to 40-ch), each up to 6 MP resolution

Two-Way Talk

1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input)

Interface

32-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

Decoding Capacity

up to 24-ch 1080P@30fps

Compression

H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Resolution

1080p lite/720p/720p lite/WD1/4CIF/VGA/CIF

Record Rate

When 1080p Lite mode is not enabled:
3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF;
When 1080p Lite mode is enabled:
3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF

Record Interval

Main stream:
When 1080p Lite mode not enabled:
For 3K stream access: 3K lite@12fps;4 MP lite@15fps/1080pLite@20fps;720p/WD1/4CIF/VGA/CIF@20fps
For 5 MP stream access: 5 MP lite@12fps;4 MP lite@15fps/1080pLite@20fps;720p/WD1/4CIF/VGA/CIF@20fps
For 4 MP stream access: 4 MP lite@15fps/1080pLite@25fps (P)/30fps (N) ;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
When 1080p Lite mode enabled:
3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
Sub-stream:
WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)

Others

Stream Type: Video, Video & Audio
Audio Compression: G.711u
Audio Bitrate: 64 Kbps

Video Detection

Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels,
it can classify human and vehicle, and extremely reduce false alarms caused by objects
like leaves and lights;
Quick search by object or event type is supported;
Facial Detection and Capture
Face picture detection, face picture search;
4-ch face picture capture

Ethernet Port

1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface
RS-485 (half-duplex)

PoE

TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP

Internal HDD

2 SATA interfaces
Up to 12 TB capacity for each disk

USB

Front panel: 1 × USB 2.0
Rear panel: 2 × USB 3.0

Power Supply

12 VDC, 5 A

Power Consumption

≤ 60 W

Dimensions

384 × 313 × 52 mm (15.1 × 12.3 × 2.0 inch)
