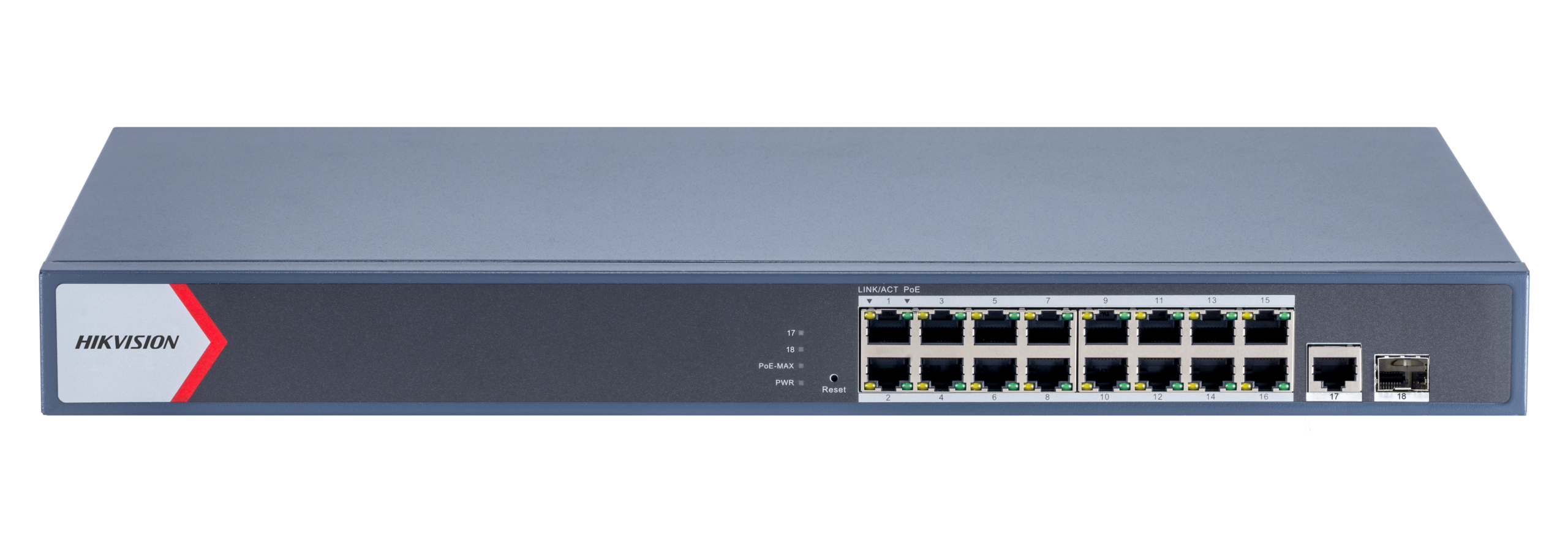

Hikvision DS-3E1518P-EI-M 16-Port Smart Managed PoE Ethernet Switch

Smart managed PoE switch featuring 16 gigabit PoE ports, 1 gigabit uplink port, 1 gigabit fiber port, long-range PoE up to 300 m, and robust surge protection — ideal for powering IP cameras and strengthening your network backbone.

The Hikvision DS-3E1518P-EI-M 16-Port Smart Managed PoE Ethernet Switch brings dependable power and intelligent network control to medium and large-scale surveillance or business setups. This switch includes 16 PoE-enabled gigabit RJ45 ports that deliver both data and power over a single cable, helping you simplify installations for devices like IP cameras, wireless access points, and VoIP phones without extra power adapters.

Additionally, it offers 1 gigabit RJ45 uplink and 1 gigabit fiber optical uplink, giving you flexibility in how you connect to your core network or extend links over longer distances. With support for IEEE 802.3af/at PoE standards, the switch provides a total PoE budget suitable for most surveillance and network deployments. Smart features like long-range PoE transmission up to 300 m and 6 kV surge protection help ensure your network stays reliable and protected.

Designed for easy management, this switch supports visualized topology and remote troubleshooting, making it a solid choice for security integrators, offices, and advanced home networks that need both performance and peace of mind.

Shell	Metal material
Net Weight	2.7 kg (5.9 lb)
Dimensions (W × H × D)	440.0 mm × 44.0 mm × 220.8 mm (17.32'' × 1.73'' × 8.69'')
Storage Temperature	40 °C to 85 °C (-40 °F to 185 °F)
Power Supply	100~240 VAC, 50/60 Hz, Max. 2.5 A
Installation Mode	Rack (equipped with mounting ears)
Ports	16 × Gigabit PoE port,1 × Gigabit RJ45 port,1 × Gigabit fiber optical port
MAC Address Table	8 K
Switching Capacity	56 Gbps
Internal Cache	4.1 Mbits
PoE Standard	IEEE 802.3af,IEEE 802.3at
PoE Power Pin	8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
PoE Port	PoE: Ports 1 to 16
Long Range	Ports 1 to 16: up to 300 m. Long range performance may vary depend on camera model or cable condition.
Port Isolation	Ports 1 to 16: port isolation mode to improve network security. Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
VLAN	VLAN is used for network scale planning and network health improvement. Support 802.1Q. Configurable VLAN ID from 1-4094. Support Trunk, Access port mode. Support Max. 32 VLAN.
HPP	Support one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Display the port rate. 2. Display the port bandwidth utilization rate. 3. Display the PoE power usage. 4. Display topology information. 5. Display the alarm status. 6. Restart ports and devices. 7. Enable port long-range mode. 8. Remotely upgrade the device.
System Maintenance	Support device management via web. Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses. Support Super IP, which is a configurable IP address (default: 10.180.190.200) for direct access. Support management via Hik-Central Pro. Support remote management via Hik-Partner Pro. Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected. Support 802.1ab LLDP for peer device discovery. Support port mirroring for fault locating.
EMC	CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
Safety	CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
Chemistry	CE-RoHS (201165EU); WEEE (201219EU); Reach (Regulation (EC) No.19072006)
