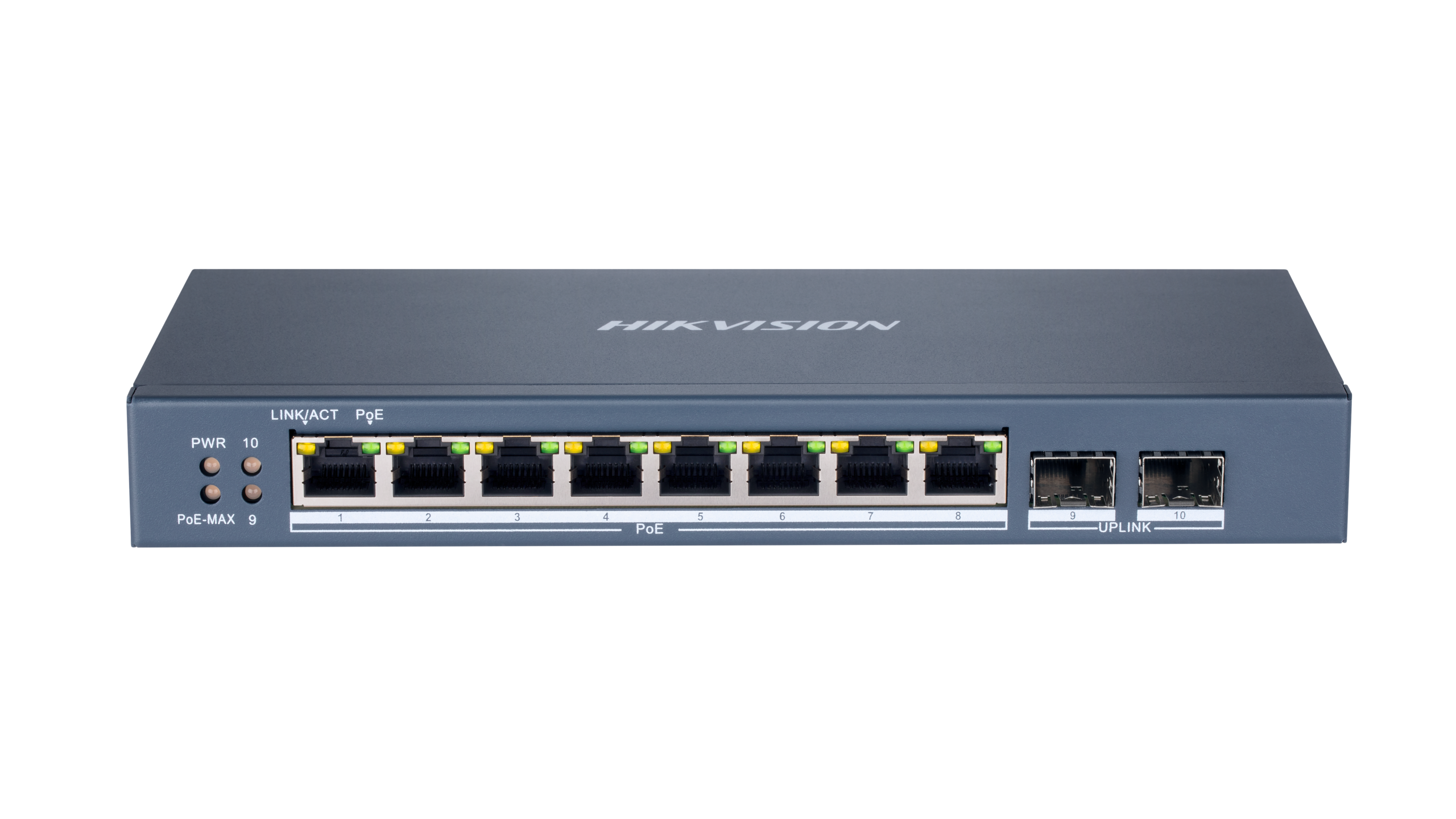

Hikvision DS-3E1510P-SI 8-Port Smart Managed PoE Ethernet Switch

Smart 8-port PoE switch with 2 gigabit fiber uplink ports, up to 110 W PoE power budget, advanced network management and built-in surge protection, ideal for CCTV and PoE-powered network devices.

SKU: DS-3E1510P-SI Categories: Uncategorized, Networking Tags: 8 Port PoE Network Switch, Smart Managed PoE Switch Brand: Hikvision

The Hikvision DS-3E1510P-SI 8-Port Smart Managed PoE Ethernet Switch is a flexible and reliable networking device built for modern IP camera systems and high-performance networks. With 8 gigabit PoE-enabled ports and 2 gigabit fiber optic uplink ports, this switch simplifies power and data delivery over one cable and gives you expanded connectivity options for servers, NVRs, or core network devices.

Designed to support IEEE 802.3af/at PoE standards, the switch provides a total PoE power budget of around 110 W, enough to power multiple PoE cameras and access points without extra adapters. Smart management features help you monitor network performance, visualize topology, and even restart devices automatically using PoE watchdog if they stop responding. Built-in 6 kV surge protection safeguards your devices from electrical spikes, while support for long-range PoE lets you extend connections up to 300 meters when needed.

This switch is a great choice for small to medium-sized surveillance systems or office networks where intelligent management, reliability, and flexibility are key.

Shell	Metal material
Net Weight	1.21 kg (2.67 lb)
Dimensions (W × H × D)	217.60 mm × 27.80 mm × 108.55 mm (8.57'' × 1.09'' × 4.27'')
Operating Temperature	0°C to 40 °C (32 °F to 104 °F)
Power Supply	48 VDC, 2.5 A
Installation Mode	Desk-Mounted, Wall-Mounted
Ports	8 × Gigabit PoE port, 2 × Gigabit fiber optical port
MAC Address Table	8 K
Switching Capacity	20 Gbps
Internal Cache	4.1 Mbits
PoE Standard	IEEE 802.3af,IEEE 802.3at
PoE Power Pin	End-span: 1/2 (+), 3/6 (-);
PoE Port	PoE: Ports 1 to 8
Long Range	Ports 1 to 8: up to 300 m. Long range performance may vary depend on camera model or cable condition.
Port Isolation	Ports 1 to 8: port isolation mode to improve network security. Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
VLAN	VLAN is used for network scale planning and network health improvement. Support 802.1Q. Configurable VLAN ID from 1-4094. Support Trunk, Access port mode. Support Max. 4094 VLAN.
HPP	Support one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Display the port rate. 2. Display the port bandwidth utilization rate. 3. Display the PoE power usage. 4. Display topology information. 5. Display the alarm status. 6. Restart ports and devices. 7. Enable port long-rage mode. 8. Remotely upgrade the device.
System Maintenance	Remote upgrade, default parameters recovery, logs viewing, basic network parameters configuration, import and export configuration, time sync
EMC	FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011 +A1: 2014, EN 55035: 2017); IC (ICES-003: Issue 6); RCM (ASNZS CISPR 32: 2015)
Safety	UL (UL 60950-1); CB (IEC 60950-1:2005, AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition); CE-LVD (EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011 + A2: 2013, EN 62368-1: 2014 + A11: 2017)
Chemistry	CE-RoHS (201165EU); WEEE (201219EU); Reach (Regulation (EC) No.19072006)
